Outdoor Universal AP - Tri radio (1x 2.4GHz/5GHz 2x2 Wi-Fi 6, 1x 5GHz 2x2 Wi-Fi 6, 1x 2.4GHz/5GHz 2x2 Wi-Fi 5), internal antennas, 2x 10/100/1000 RJ45, IoT Enabled (BT/BLE), 1x RS-232 RJ45 Serial Port. Pole/wall mount kit and PoE injector included. Region
Manufacturer
Categories
MPN
FTNFAPU234FA
Model#
FAPU234FA
UNSPSC Code
2
Information

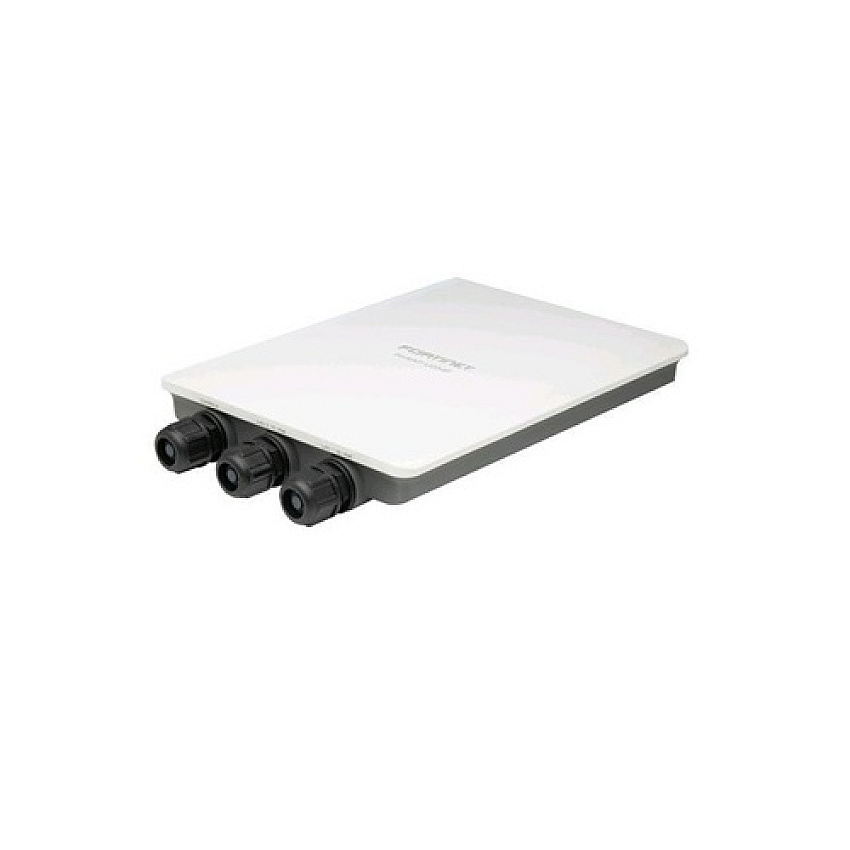

Product Description: Fortinet FortiAP U234F - wireless access point Bluetooth, ZigBee, Wi-Fi 6
Device Type: Wireless access point
Form Factor: Wall / pole mountable - outdoor
Data Link Protocol: Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6)
Frequency Band: 2.4 GHz (1 band) / 5 GHz (2 bands)
Capacity: Maximum number of configured SSIDs: 16 æ Wireless clients per Wi-Fi radio: up to 512
Included Accessories: Pole/wall mount kit, grounding cable
Power Over Ethernet (PoE) Supported: PoE++
Dimensions (WxDxH): 8.6 in x 12.4 in x 1.7 in
Weight: 2.66 lbs
Manufacturer Warranty: Limited lifetime warranty
Device Type: Wireless access point
Ruggedized Design: Outdoor
Width: 8.6 in
Depth: 12.4 in
Height: 1.7 in
Weight: 2.66 lbs
Form Factor: Wall / pole mountable
Connectivity Technology: Wireless
Line Coding Format: 64 QAM, 256 QAM, BPSK, QPSK, 1024 QAM, OFDMA
Data Link Protocol: Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6)
Spread Spectrum Method: OFDMA
Frequency Band: 2.4 GHz (1 band) / 5 GHz (2 bands)
Capacity: Maximum number of configured SSIDs: 16 æ Wireless clients per Wi-Fi radio: up to 512
Features: DFS support, surge protection, Mesh networking, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), Captive Portal, iBeacon technology, spectrum analyzer, Packet Sniffer Mode, bridge mode, 2x2 MIMO technology, Target Wait Time (TWT), BSS Coloring
Encryption Algorithm: PEAP, WPA, WPA2, WEP, EAP-SIM, EAP-AKA, WPA3, EAP-FAST, EAP-TLS, EAP-TTLS, MSCHAPv2, EAP-GTC, PEAPv1
Authentication Method: Radio Service Set ID (SSID), MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM, EAP-AKA, EAP-GTC, EAP-TLS, EAP-TTLS
Compliant Standards: IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11j, IEEE 802.3az, IEEE 802.11w, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Antenna: External
Antenna Qty: 5
Internet of Things (IoT) Compatible: Yes
Communications Technology: Bluetooth Low Energy (LE), Zigbee
Interfaces: 1 x 1000Base-T (PoE++) - RJ-45 æ 1 x 1000Base-T (PoE output) - RJ-45 æ 1 x management (RS-232) - RJ-45
Included Accessories: Pole/wall mount kit, grounding cable
MTBF: 10 years
Compliant Standards: RoHS, IP67, EU Low Voltage Directive
Power Over Ethernet (PoE) Supported: PoE++
Power Device: Power injector
Power Consumption Operational: 21 Watt
Shipping Weight: 7.94 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: -40 ðF
Max Operating Temperature: 140 ðF
Humidity Range Operating: 10 - 90% (non-condensing)
COO: TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
2
Ships via UPS
Y
Brand
Fortinet
Manufacturer Stock No.
FAP-U234F-A
A: Yes, the FAP-U234F supports Power over Ethernet (PoE), making it easier to install by eliminating the need for separate power cables.
A: Yes, the FAP-U234F is designed to support the demands of large enterprises, offering scalability and the ability to manage multiple access points through centralized management.
A: The coverage range of the FAP-U234F depends on environmental factors, but it is engineered to provide wide and reliable coverage suitable for large areas.
A: The FAP-U234F is primarily designed for indoor use. For outdoor applications, Fortinet offers other models specifically tailored for outdoor environments.
A: The FAP-U234F can be managed through Fortinet's FortiCloud or FortiGate platforms, allowing for centralized control, configuration, and monitoring of the device.
